Replacing an oven should be straightforward, but a few millimetres can be the difference between a quick swap and an expensive kitchen alteration. This built in oven size guide explains the measurements that matter most, from the appliance itself to the kitchen housing it needs. Whether you are upgrading a family kitchen, fitting out a rental property or replacing a failed oven, measuring first helps you buy with confidence and avoid paying for a model that will not fit.

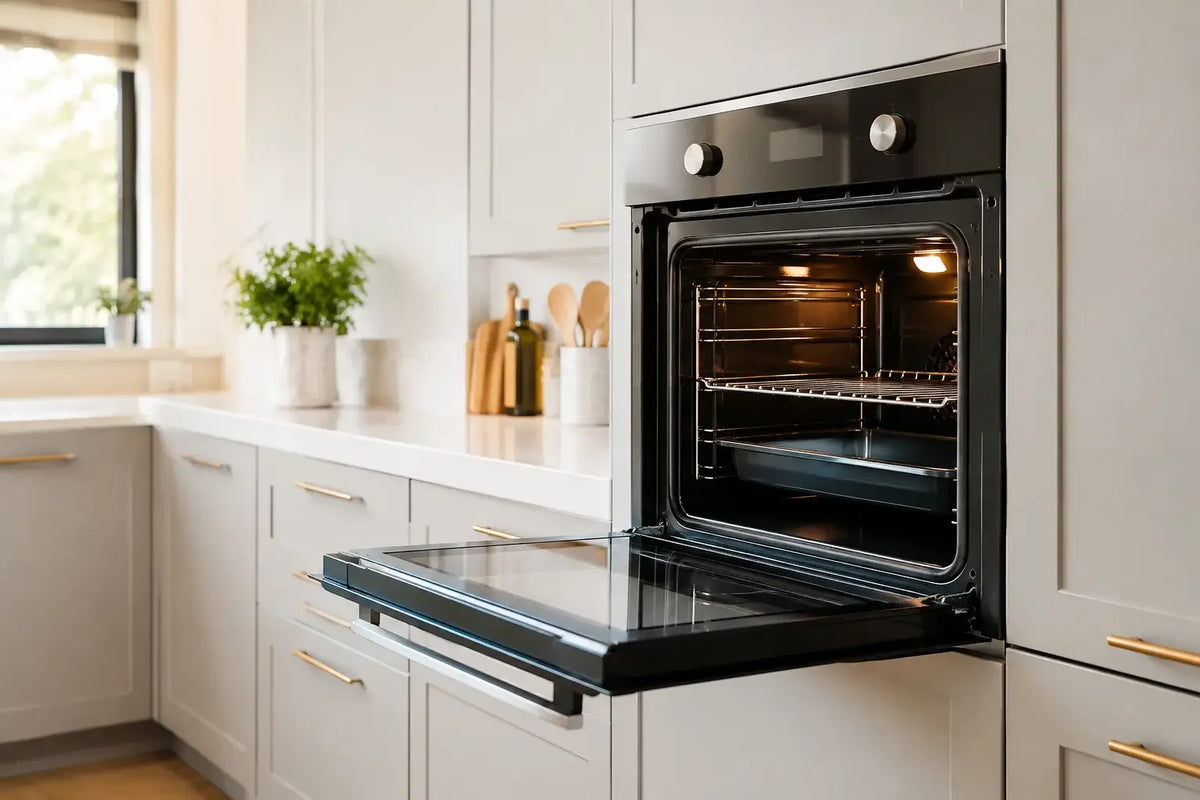

Built in oven size guide: start with the housing
A built-in oven sits inside a purpose-made cabinet, often called an oven housing or appliance housing. Do not choose solely by the oven's advertised width. The critical figure is the niche or cut-out size stated in the installation instructions. This is the internal space in the cabinet where the oven will sit.
Most full-size UK built-in ovens are described as 60cm wide, but the oven itself is usually just under 60cm wide - commonly around 59.5cm. The cabinet opening is normally narrower again, often around 56cm wide, so the oven's front trim overlaps the cabinet edges and creates a neat finish.
Before ordering, measure the internal width, height and depth of the empty housing. Measure at more than one point, particularly in older kitchens, as units are not always perfectly square. Then compare your figures with the manufacturer's installation diagram for the exact model. Product dimensions and installation dimensions are not interchangeable.
Standard built-in oven sizes in the UK
60cm single ovens
A 60cm single oven is the most common choice for UK kitchens. It is usually around 59.5cm wide and 59.5cm high, with a body depth of roughly 54.5cm to 57cm. Many need a housing approximately 560mm wide, 590mm to 600mm high and at least 550mm deep, but these figures vary by brand and model.
This format suits a tall housing at eye level or a base unit below a worktop. It offers a practical balance of cooking capacity and cabinet space, making it a sensible replacement option in many homes. A larger litre capacity does not necessarily mean a physically larger appliance, so check internal capacity as well as external measurements if you regularly cook for a bigger household.
60cm double ovens
Built-in double ovens are generally the same width as a standard single oven but significantly taller. Their overall height is often about 88.5cm to 89cm, designed for a tall 90cm housing. They provide two separate cavities, which is useful when cooking different dishes at different temperatures or managing the Christmas dinner without taking turns with one oven.
The trade-off is space. A double oven needs a dedicated tall unit and is too tall for a standard single-oven aperture. If you are replacing an existing double oven, measure the housing height carefully rather than assuming every 60cm model will fit.
Compact 45cm ovens
Compact built-in ovens are usually around 45cm high and 60cm wide. They are popular in smaller kitchens, fitted kitchens with a stacked appliance layout, and homes where a compact oven is paired with a built-in microwave or coffee machine above or below it.
A 45cm model can save valuable cabinet space, but it is not simply a smaller version of a full-size oven. Capacity is lower, so check whether it will accommodate your usual roasting tray, casserole dish or baking tins. For some households, a compact oven is ideal as a second oven; for others, a full-size single oven is the more practical everyday choice.
90cm built-in ovens
90cm built-in ovens are less common than 60cm models but can be a strong option for larger households and keen home cooks. They need a much wider specialist housing and should not be confused with a 90cm range cooker, which is freestanding and combines an oven with a hob.
These models can offer generous capacity, though they come with higher appliance and cabinetry costs. If you are planning a new kitchen, confirm the oven housing specification with your kitchen supplier before choosing the appliance.
Measure depth properly, including space for cables
Depth is one of the easiest measurements to overlook. The front of the oven may sit flush with the cabinet doors, but the appliance body, plug or hardwired connection and ventilation space all need room behind it.
A typical built-in oven body is around 55cm deep, while many housings are designed with an internal depth of at least 55cm. However, a cabinet backed tightly onto a wall, boxed-in pipework or a poorly positioned socket can prevent the oven from sitting correctly. Do not force an oven into place if the cable is trapped or sharply bent.
Look at where the electrical connection is located as well. Some installations use an accessible switched fused connection unit nearby rather than directly behind the oven. A qualified installer can advise on the safest arrangement for your kitchen and the appliance's electrical rating.
Built-in, built-under and freestanding are not the same
The terms can sound similar, but they describe different installation types. A built-in oven is designed to fit within a tall cabinet or an appropriate base housing. A built-under oven fits below a worktop and is designed around that lower installation position. A freestanding cooker stands on the floor and includes its own hob.
In many cases, a standard single built-in oven can be fitted below a worktop, but only if the cabinet, ventilation arrangement and manufacturer instructions allow it. Do not assume an eye-level oven can replace a built-under model without checking. The worktop clearance, plinth arrangement and surrounding cabinetry may differ.
An integrated appliance is also not quite the same thing. Integrated usually refers to appliances concealed behind a matching kitchen door, such as dishwashers or fridge freezers. Built-in ovens remain visible at the front, with their own glass door and control panel.
Ventilation is part of the size requirement
An oven housing needs ventilation gaps so heat can escape safely. These may include space at the rear, a gap beneath the appliance, or ventilation through the cabinet plinth depending on the model and installation layout. The exact requirements are set by the manufacturer and must be followed.
This is why measuring only the front opening is not enough. An oven can look as though it fits while still lacking the airflow needed for safe operation. Insufficient ventilation may affect performance, cause heat damage to nearby units and create problems with the appliance warranty.
If you are replacing an older oven, inspect the housing for swollen side panels, loose trim, damaged shelves or heat marks. Sorting out a worn cabinet before delivery is usually easier than discovering the problem while the new oven is waiting to be installed.
Check the door clearance and cooking space
An oven may fit the cabinet perfectly but still be awkward to use. Think about how far the door opens into the kitchen, particularly in a narrow galley layout. Allow room to stand safely in front of the open door and to remove hot trays without catching nearby drawers, an island or a dining table.
For an eye-level installation, consider who uses the oven most. A higher position reduces bending and can make checking food easier, but the top shelf should still be comfortable to reach. Under-counter placement keeps the appliance lower and may suit a kitchen where tall-unit space is needed for storage.
It is also worth checking the usable cavity dimensions. If a new oven has a similar litre capacity to your old one but shallower internal shelves, your favourite trays may not fit as expected. Manufacturers often provide cavity measurements and shelf details in their specification information.
A simple measuring checklist before you buy
Take three internal housing measurements: width, height and depth. Write them down in millimetres, then check the installation diagram for the model you are considering. Also confirm whether there is sufficient ventilation space, where the electrical connection sits, and whether the oven door has clear room to open.
If you are keeping your current cabinet, take a photo of the empty housing and the appliance label from your existing oven if possible. This can make it much easier to compare options or ask for advice. For a kitchen renovation, wait until the cabinet plan is confirmed before committing to an appliance size.
Choosing the right size without overspending
The best oven size is not always the biggest one. A standard 60cm single oven is enough for many households and offers the widest choice of features, brands and value-led deals. A double oven earns its space when you regularly cook multiple dishes at once, while a compact model can be a smart fit where a full-height setup would make the kitchen feel cramped.
Look beyond the headline size and focus on the dimensions that match your kitchen, the capacity you will genuinely use and the installation work your budget allows for. At HomeWise Appliances, our sales team are here to help if you want a second pair of eyes on a model's measurements before you buy. A few careful checks now can leave you with an oven that fits neatly, works hard and keeps more of your budget available for the rest of the kitchen.
